Deskripsi

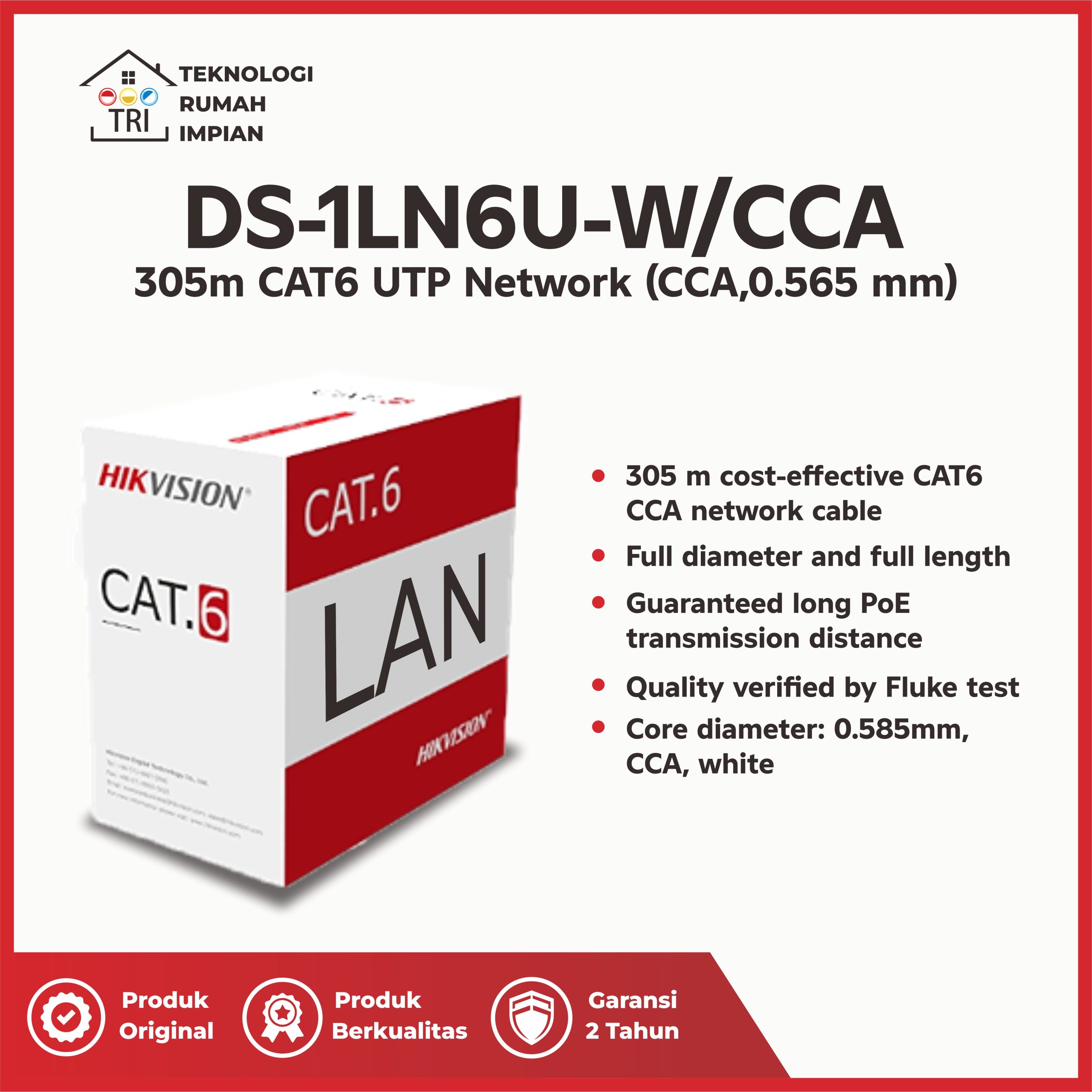

Model DS-1LN6U-W/CCA Hikvision Kabel LAN UTP Cat 6 305 Meter 23AWG

Kabel LAN UTP Cat 6 di design Khusus untuk koneksi transfer data video IP Camera CCTV, di produksi di Pabrik Hangzhou Hikvision Digital Technology Co.,Ltd

Model DS-1LN6U-W/CCA
Category CAT. 6 CCA U/UTP 4x2x23AWG/1 PVC
Conductor
Material CCA（Copper content：27%）
Nom.O.D.(mm) 0.585
up +0.01
down -0.01
Insulation
Material Solid HDPE
Diameter 1.05±0.05mm
Rip-cord: Yes
Drain wire: No
Sheath Physical Properties: Before Aging Tensile Strength (Mpa) ≥13.5
Elongation(%) ≥150
Aging Period (℃×hrs) 100℃×24h×10d
After Aging Tensile Strength(Mpa) ≥12.5
Elongation(%) ≥125
Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks
Electrical Characteristics: 1.0-250.0MHz Impedance ((Ω) 100±15
1.0-250.0MHz Delay Skew (ns/100m) ≤45
DC Resistance (Ω/100m) max 9.38
DC Conductor Resistance Unbalance (%) max 5.0
Ambient temperature: -20℃ – 75℃
