Specifications

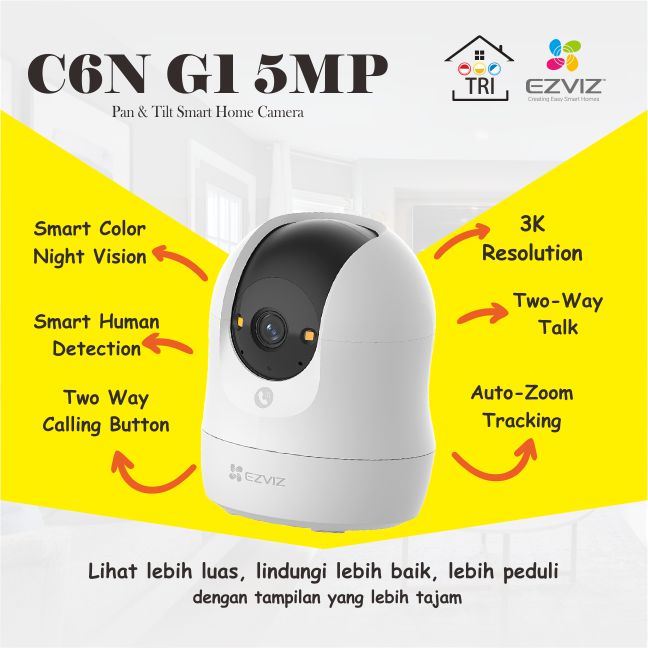

Model CS-C6N-R200-1Q5WFL

Camera

Image Sensor 1/3″ Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

Lens

4mm@F1.6, view angle: 105°(Diagonal), 88° (Horizontal), 46°(Vertical)

Lens Mount M12

Day & Night IR-cut filter with auto-switching

DNR 3D DNR

WDR WDR

Compression

Video Compression H.264 / H.265

Video Bit Rate Adaptive bit rate


Max. Resolution 3K (2880 × 1620）

Frame Rate Self-adaptive during network transmission

Network

Smart Alarm Motion Detection, AI-Powered Human Shape Detection

Wi-Fi Pairing AP pairing

Protocol EZVIZ Cloud Proprietary Protocol

Interface Protocol EZVIZ Cloud Proprietary Protocol

Interface

Storage Supports microSD card (max. 512 GB)

Power Type-C

Wired Network RJ45 × 1 (10 M / 100 M self-adaptive Ethernet port)

Wi-Fi

Standard IEEE802.11a, 802.11b, 802.11g, 802.11n,

Frequency Range

2.4 GHz: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

2.4G: Supports 20MHz

Security WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate

11b 11Mbps, 11g 54Mbps, 11n MCS7, 11a 54Mbps, 11ac MCS9.11ax MCS11

Output Power (EIRP) 19 dBm

Antenna Gain 1.9 dBi

General

Operating Conditions

-10°C to 45°C (14°F to 113 °F )

Humidity 95% or less (non-condensing)

Power Supply DC 5V / 2A

Power Consumption Max. 8 W

IR Range Max. 10 meters (32.81ft)

Dimensions 88 × 88 × 113 mm (3.46 × 3.46 × 4.45 inch)

Packaging Dimensions 103 × 103 × 168 mm (4.06 × 4.06 × 6.61 inch)

Net Weight 222 g (0.49 lb)

In the box

In the box – C6N G1 Camera

– Power Adapter

– Power Cable

– Drill Template

– Mounting Plate

– Screw Kit

– Regulatory Information × 2

– Quick Start Guide

Certifications

Certifications CE / UL / WEEE / REACH / RoHS
