Specifications

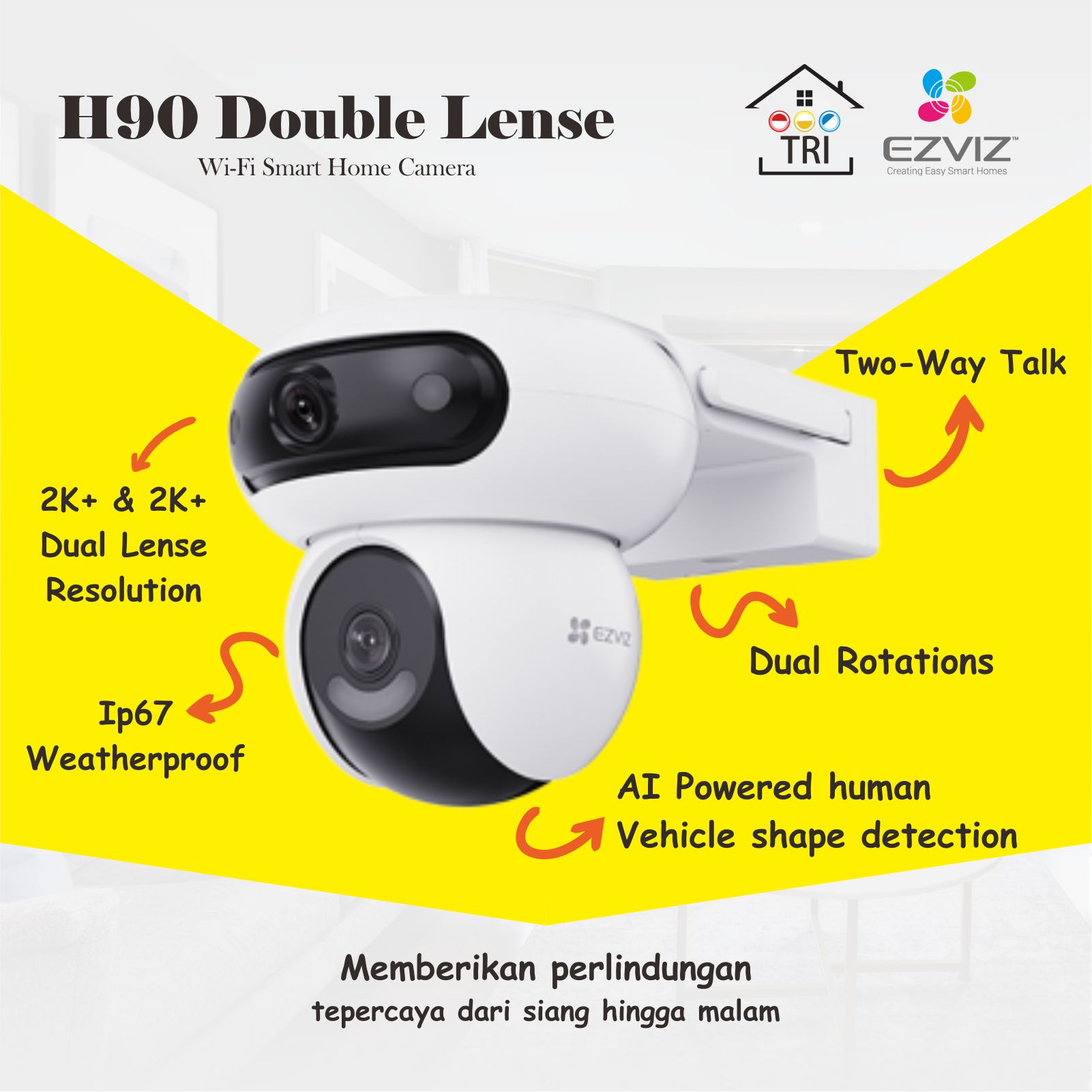

Model : CS-H90-R100-8H44WKFL

Camera
Image Sensor: 1/3″ Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens : Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54°
Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°
PT Angle: Pan: 324°, Tilt: 90°
Minimum Illumination: 0.5 Lux @(F1.6, AGC ON),
0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount: M12
Day & Night: IR-cut filter with auto switch
DNR: 3D DNR
WDR: Digital WDR
Black & White Night:30 m (98 ft)

Video & Audio
Max Resolution: 2K+ (2880 × 1620)
Frame Rate: Max:15fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive

Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: WPA-PSK/WPA2-PSK
Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP paring
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions
Smart Alarm
AI-powered human shape detection
AI-powered vehicle shape detection
Motion detection
Auto Tracking: Supports
Customized Alert Area: Supports
Two-way Talk: Supports
Preset Locations: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage
Local Storage: Supports microSD card (max. 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (subscription required)

General
Operating Conditions: -30°C to 50°C ( -22 °F to 122 °F )
Humidity 95% or less (non-condensing)
IP Grade: Weatherproof Design
Power Supply: IP65 + 2h rainstorm
Power Consumption: MAX. 18W
Dimensions: 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch)
Packaging Dimensions: 255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch)

Weight
Net weight: 723 g (25.51 oz)
With Package: 1203 g (42.43 oz)

In the box
– H90 Dual 2K+ Camera
– Power Adapter
– Drill Template
– Waterproof Kit
– Screw Kit
– Regulatory Information × 2
– Quick Start Guide
