Deskripsi

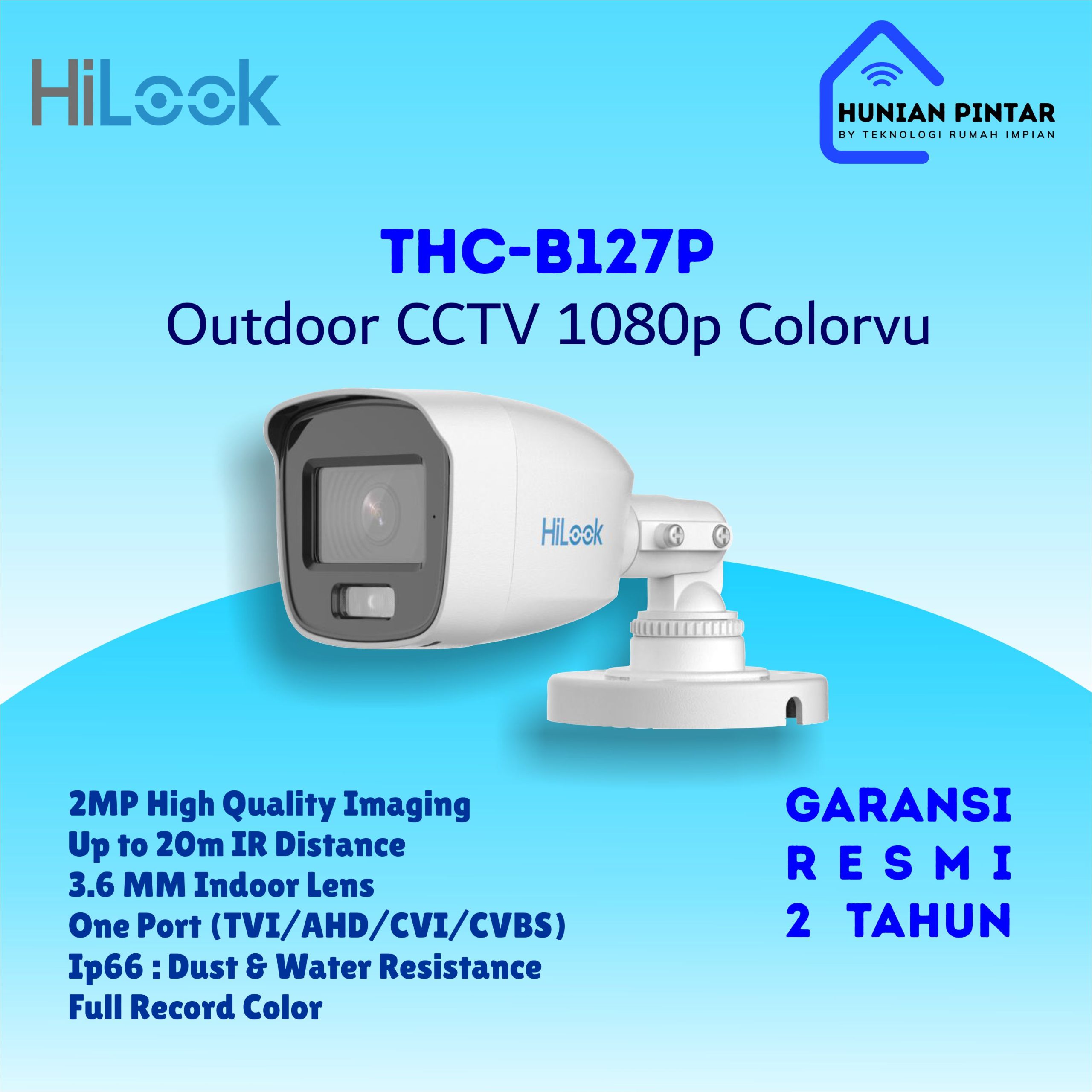

Hilook 2 MP White Light Fixed Mini Bullet Camera
Model : THC-B127-P
Garansi 24 Bulan

Specification :

Camera
Image Sensor : 2 MP CMOS
Max. Resolution : 1920 (H) × 1080 (V)
Signal System : PAL/NTSC
Frame Rate :
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC

Min. Illumination : 0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time ; PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens Mount : M12
Light Alarm : Solid Light Alarm (White Light)
Day & Night : 24/7 Color Imaging
Angle Adjustment ; Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Lens
Lens Type : 2.8 mm/3.6 mm/6 mm fixed focal lens
Focal Length & FOV :
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°
6 mm, horizontal FOV: 52°, vertical FOV: 29°, diagonal FOV: 61°

Illuminator
Supplement Light Type : White Light

Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
Image Settings : Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
Wide Dynamic Range (WDR) : Digital WDR
Image Enhancement : DWDR;BLC;HLC;Global
White Light : Auto/Off
AGC : Yes
Day/Night Mode : Color
White Balance : Auto/Manual
Noise Reduction : 3D DNR/2D DNR
Language : English

Interface
Video Output : Switchable TVI/AHD/CVI/CVBS

General
Operating Condition : -40°C to 60°C (-40°F to140°F), humidity: 90% or less (non-condensing)
Power Supply : 12 VDC±25%
*You are recommended to use one power adapter to supply the power for one camera.

Consumption : Max. 2.4 W
Material : Plastic
White Light Range : Up to 20 m
Dimension : 162.7 mm × 70 mm × 70 mm (6.41″ × 2.75″ × 2.75″)
Weight : Approx. 152.5 g (0.34 lb.)

Approval
Protection : IP66
